More wing work

Worked on the wings a bit more this morning.  I cut the control rod exits into the skins for flaps and ailerons. I also cut holes for the aileron and flap hinge hardware and installed the hinges.

Here is a photo of the exit for the flap teleflex cable.  This operates the flaps.  Also shown is one of the installed flap hinge brackets.2010-09-24_08-01-10_551

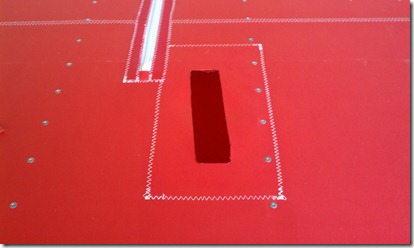

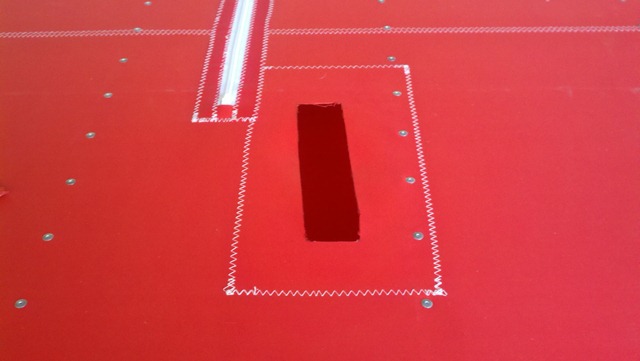

This is a photo of the aileron push/pull tube exit.  I’ll put the tube in when I mount the wings.2010-09-24_08-01-50_139
