Ultra-Prop Propeller Assembly

I guess yesterday was really the start of the build log for the Six Chuter P3 Lite PPC but today was the first day I put something together.  I ordered a 4-bladed prop to provide a little more thrust to help offset the bigger tires and the weight they will add.  When the prop arrives it needs assembly.  The four blades have to be installed to the prop hub along with the blocks that set the pitch of the propeller.

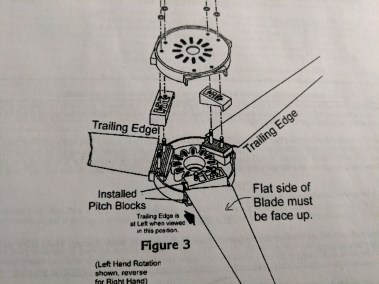

IMG_20170312_182700Assembly is super easy.  Put 8 bolts (with washers) through one of the prop hub halves, lay the pitch blocks in, lay the prop blades in, more pitch blocks, and then the other prop hub half.  Add 8 nylock nuts and washers and torque to 120 inch lbs.  Done!
